- Single Lever Handle Allows for Both On/Off Activation
- Ceramic Disc Valves Exceed Industry Longevity Standards for a Lifetime of Durable Performance
- 1.8 gal/min (6.84 l/min) Maximum Flow Rate [Max at 60 psi (4.1 bar)]
- Hot/Cold Indexing on Handle
- Flexible Supplies for Simplified Installation
- Backflow Protection
- Pull Out Sprayer
Installation
- Single Hole
Codes/Standards
- ADA Compliant
Technical Information

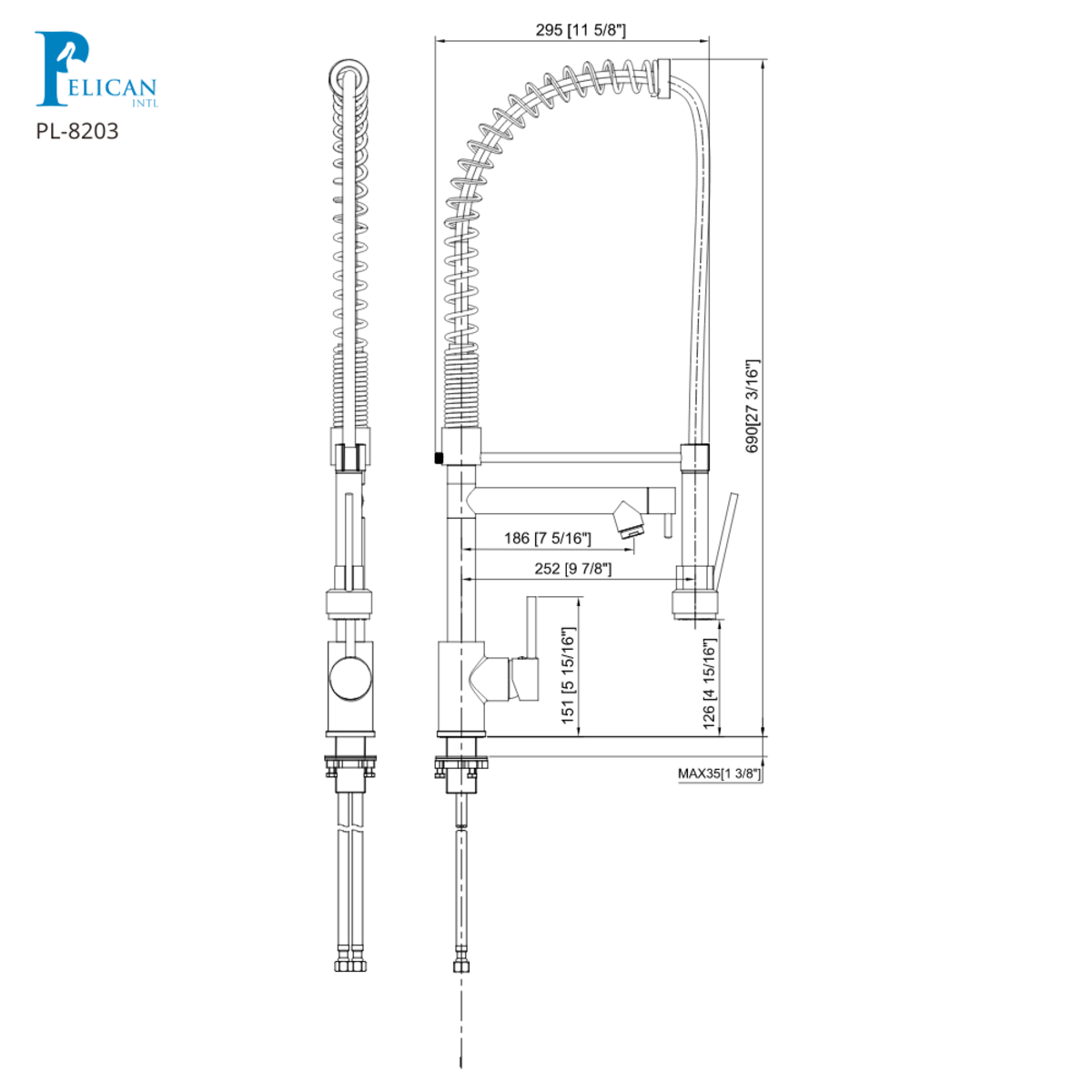

All product dimensions are nominal
Overall Height: 27 3/16"
Additional length: 7 5/16"
Spout Length: 9 7/8"
Spout Height: 4 15/16"
Flow Rate: 1.8 gal/min (6.84 l/min)
Pressure: 60 psi (4.1 bar)
Valve Body: Lead Free Brass
Drain Included: No
Installation Information
Install this product according to the installation instructions.
Limited Lifetime Warranty
See website for detailed warranty information.
PL-8203 BN
